    Hanging HFC 227ea Clean Agent 1.6MPa 20L FM200 Automatic Fire Extinguisher Without Residue For Battery Room

    Ask Lasest Price
    Brand Name : Guangzhou Xinlin Firefighting Equipment Co., Ltd.
    Model Number : GQQ4/6/8/10/20/30/2.5-XL-92
    Certification : CE UL
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30000 sets per month
    Delivery Time : 10-15 working days after payment or receipt of L/C
    • Product Details
    • Company Profile

    Hanging HFC 227ea Clean Agent 1.6MPa 20L FM200 Automatic Fire Extinguisher Without Residue For Battery Room

    FEATURES
    Specifications
    Cylinder Volume: 4L, 8L, 10L,16L, 20L, 30L
    Pattern Of Extinguishing: Enclosed Flooding
    Agent: HFC-227ea(FM200)
    Working Pressure: 1.6MPa
    Color: Red
    Highlight:

    hfc 227ea clean agent For Anechoic Chamber

    ,

    1.6MPa hfc 227ea clean agent

    ,

    Automatic Fire Extinguisher For Anechoic Chamber

    Basic Infomation
    Place of Origin: China
    Brand Name: XinLin
    Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
    Model Number: XQQW8/1.6, XQQW10/1.6, XQQW16/1.6, XQQW20/1.6, XQQW30/1.6
    Payment & Shipping Term
    Packaging Details: Plywood outer box with bubble bag or paper
    Delivery Time: 10-15 working days
    Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card
    Supply Ability: 28000 sets per week

    PRODUCT DESCRIPTION

    1.6Mpa HFC227ea Fire Extinguishing System Without Residue For Anechoic Chamber


    Description


    Hanging type FM-200 fire extinguisher is a preset and independent fire extinguishing system. It is easily wall or ceiling mounted in the protected area to directly put out the fire, without pipe network distribution. The electromagnetic actuated hanging extinguisher has two activation methods. When control panel receives signal from smoke/heat detector of fire alarm, it will send signal to electromagnetic extinguisher automatically which opens container valve, so to discharge fire extinguishing agent. It also could be activated by manual control button.


    Parameters


    No

    Specifications

    Parameters

    1

    Tank size

    16Ltr, 20Ltr, 30Ltr

    2

    Device model

    XQQC16/1.6, XQQC20/1.6, XQQC30/1.6

    3

    Storage pressure

    1.6MPa

    4

    Maximum working pressure

    2.5MPa

    5

    Discharge time

    ≤8s

    6

    Maximum filling rate

    1kg/L

    7

    Device starting power

    DC24V/1.6A

    8

    Environment temperature of protection zone

    0℃~50℃


    Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.

    Device model

    Filling amount (kg)

    Maximum working pressure(Mpa)

    Storage pressure (Mpa)

    Maximum coverage
    (m³)

    Starting mode

    XQQC16/1.6

    16

    2.5

    1.6

    22.22

    Starting power:
    DC24V/1.6A


    Solenoid actuator

    XQQC20/1.6

    20

    2.5

    1.6

    27.78

    XQQC30/1.6

    30

    2.5

    1.6

    41.67


    Components


    One spherical pressure tank, fire extinguishing agent(HFC-227ea, same as FM200), hanging mounting, thermal sensor(one little glass tube filled with liquid whose volume will be changed by temperature), pressure switch, stainless steel pipe and nozzle.


    Advantages


    Though automatic FM200 fire extinguisher -- ceiling mounted style has two kinds of system, but their advantages are the same as followings:​

    1. Substantial consideration of little protection. Some areas, such as server rooms or electric rooms or the like would be very small, which require little fire extinguishing agent. Then, hanging type system can play its role.

    2. Little occupation of space. As the protection zone is very small, so maybe there is no much space to place other machines or devices or objects. Then, the ceiling mounted style is designed with the small but efficient function of fire suppression and overall coverage to the whole room.

    3. Convenient installation and transportation. Because of relative light and small figure, even one person can hold and fix it on the top of ceiling or wall. But additionally, the temperature-controlled model cannot be installed more than one piece in principle or practice.


    Packages

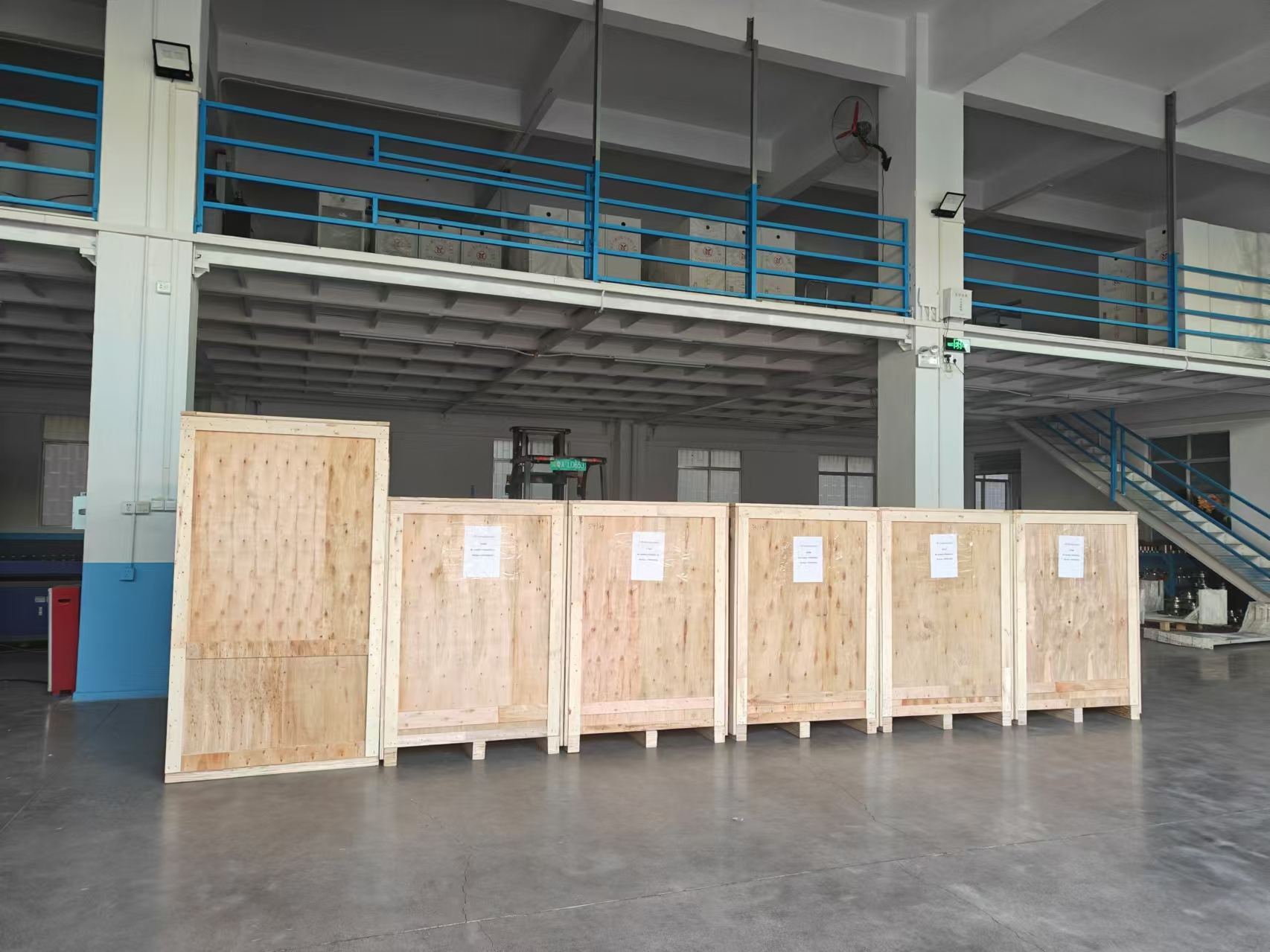

    We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
